Networked Control Panels are Rosslare's most advanced and secure access solutions. Featuring a 4 reader scalable model that supports online and offline operation, they easily scale up to multiple remote premises. Designed for ease of installation, this product provides high secure professional performance in AC425 Systems. Rosslare’s AxTraxNG™ Server for Microsoft Windows to deliver full featured access control and automation capability via Molex and Terminal Block.
Features:

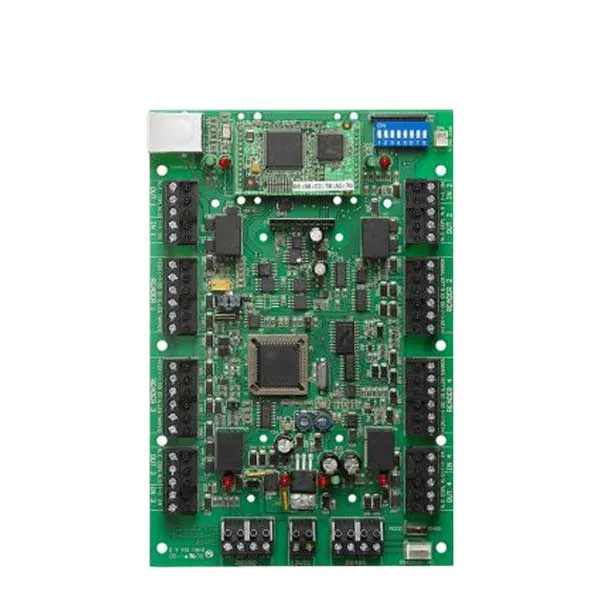

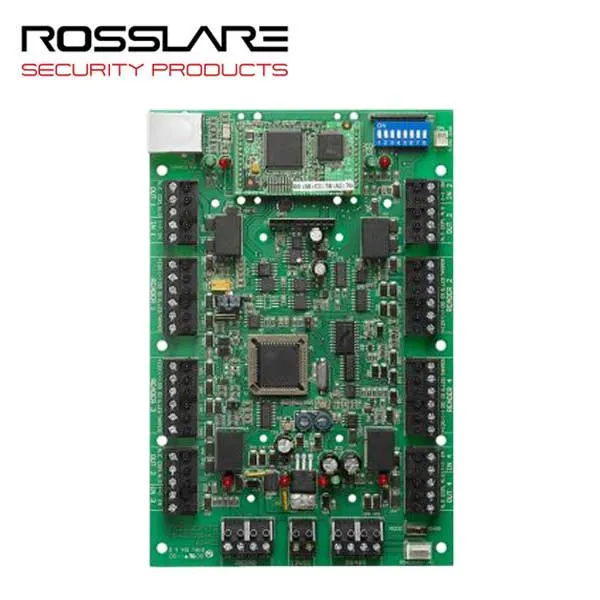

- Printed Circuit Board Assembly (PCBA) Only for AC425
- Networked up to 1023 Panels
- Networked up to 4092 Doors
- Up to 30,000 users with access rights for every panel
- Panel supports 1-door (In/Out) and 2-door (In/Out, In/In or Out/Out) configurations
Specifications:
| Type: | Printed Circuit Board Assembly |
| Readers: | Standard = 4 reader ports. Output voltage: 12 VDC Max. current: 245 mA LED control output D0/D1, tamper input |
| Max Readers: | With MD-D04: 8 reader ports |
| Inputs: | 4 supervised high impedance inputs. 8 or 12 supervised inputs when using MD-D04 or MD-IO84 expansion boards. Maximum voltage: 5 VDC |
| Outputs: | 4 relay outputs 8 supervised outputs when using MD-D04 or MDIO84 expansion boards. 5A relay N.O. and N.C. options |
| Interface: | RS-485 |
| RS-485: | Molex and Terminal Block |
| Speed Options: | 9600, 19200, 57600, 115200 bps |
| Serial Ports: | 10/100 Ethernet Port |
| Networking: | Rosslare's AxTraxNG™ Server |
| Users: | 30,000 active credentials (Card & PIN) |
| Event Log: | 20,000 Events |
| Operating Voltage: | 13.8 VDC 1.5 A from PS-33 |
| Max Input Current: | Standby: 80 mA. Maximum: 325 mA |
| Housing: | Printed Circuit Board Assembly Only |
| Standard Approvals: | CE – Safety, ENC, RFI, LVD RED 2104/53/EU; FCC – CFR47 Part 15b |
| Warranty: | 2-Year Limited |
