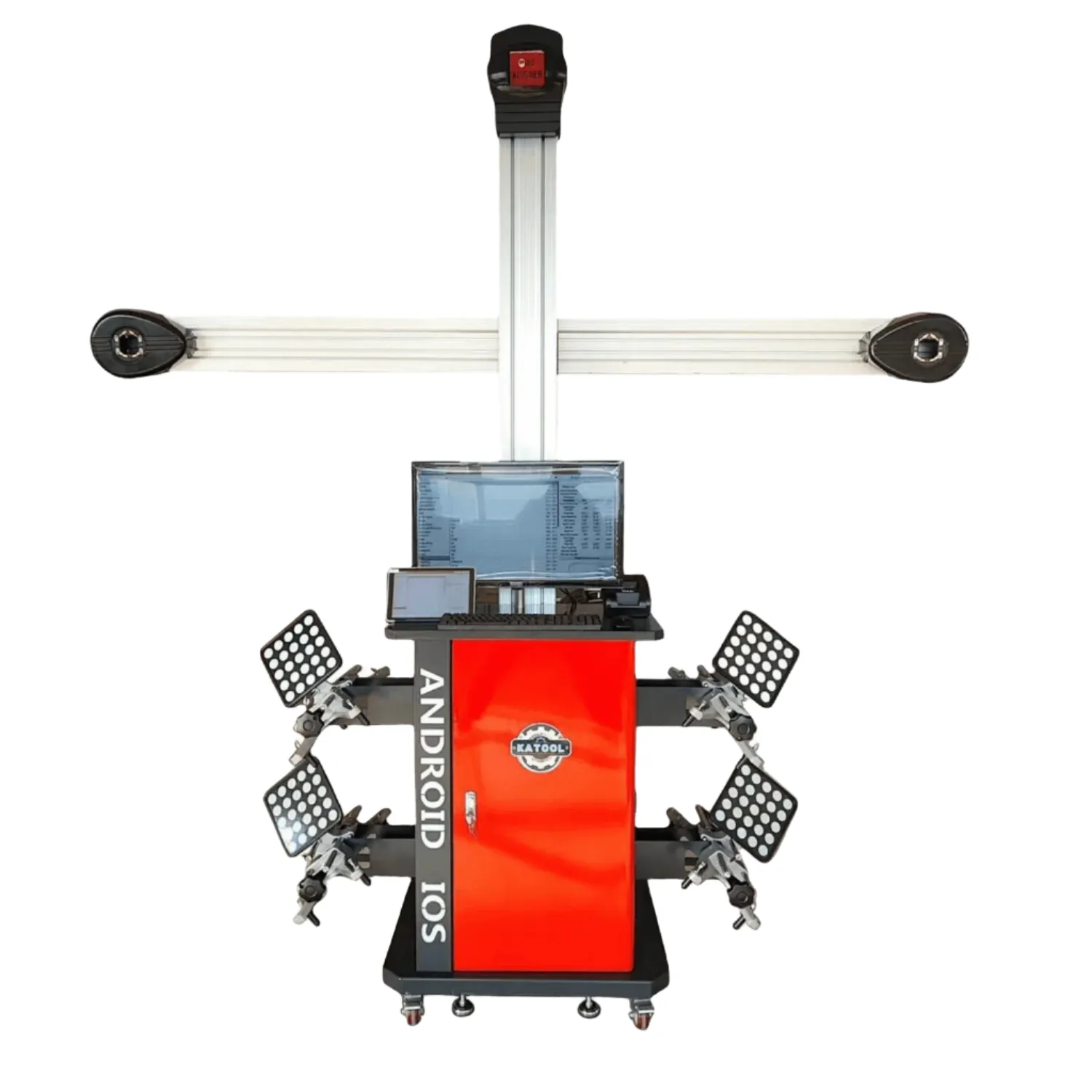

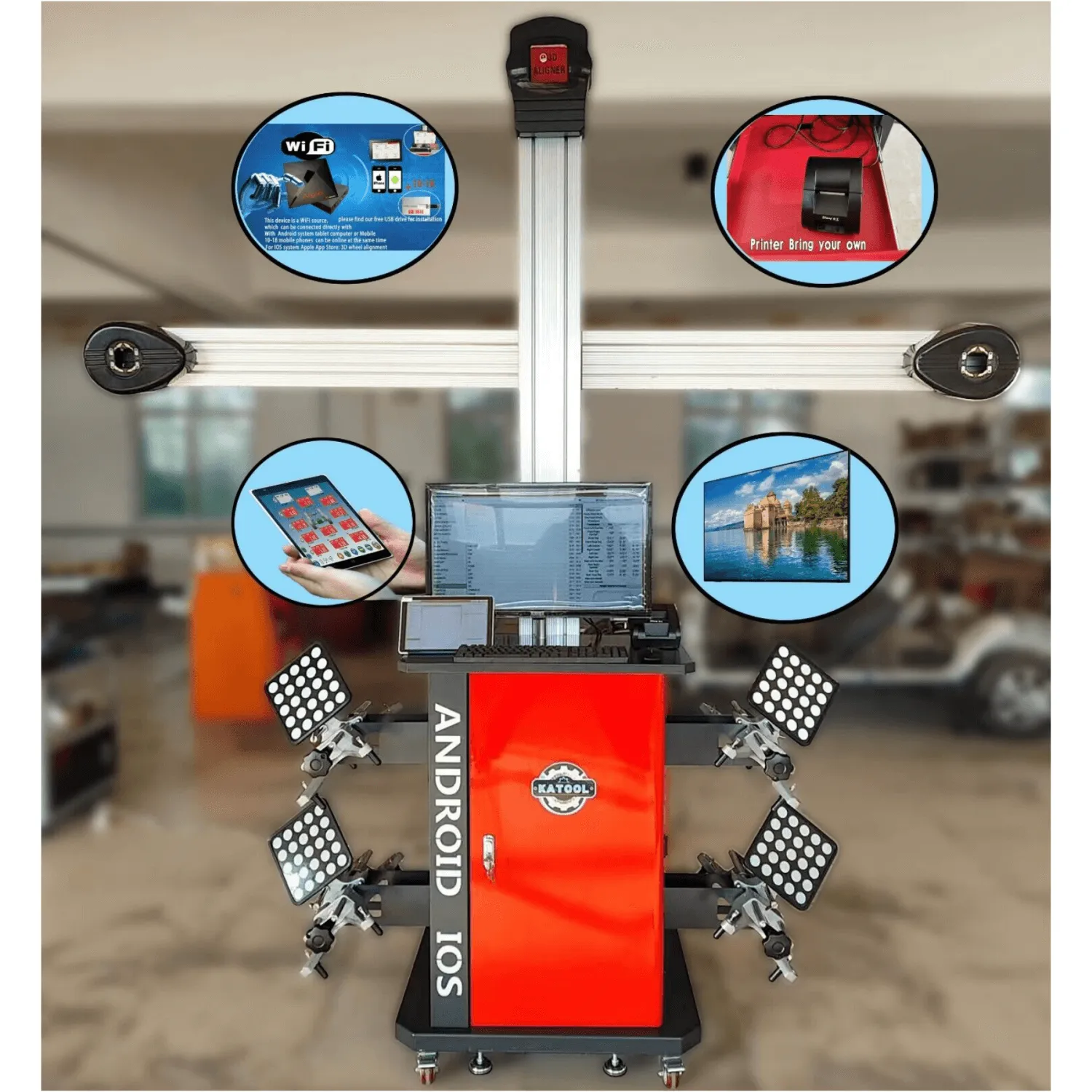

Introducing the AV9 Pro Full-Automatic Wheel Alignment Machine, a game-changer for automotive professionals seeking unparalleled precision. Designed to effortlessly operate on both 2 Post and Scissor Lift systems, this advanced alignment tool redefines efficiency in wheel alignment. The AV9 Pro boasts full automation, ensuring swift and accurate readings for comprehensive vehicle adjustments.

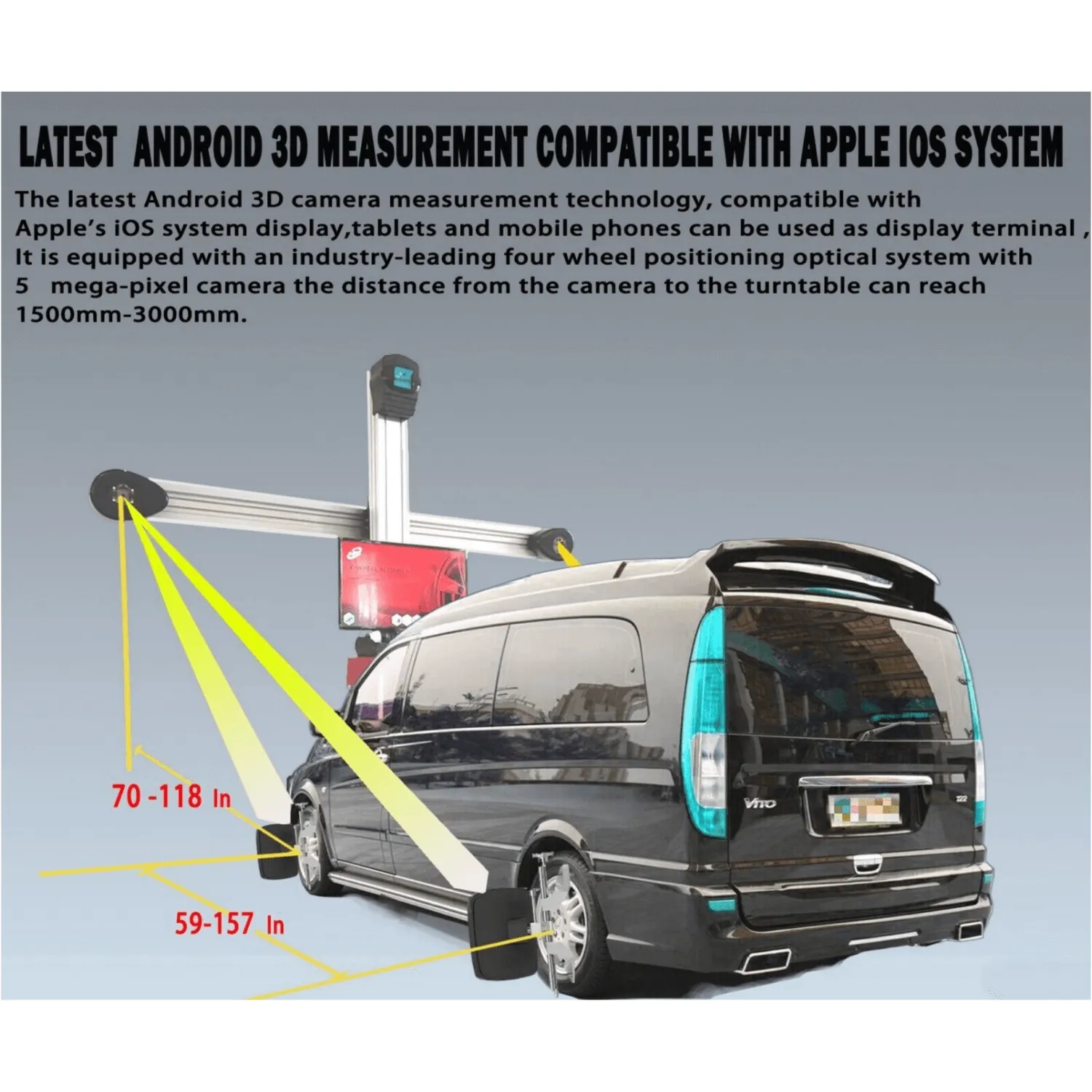

The latest Android 3D camera measurement technology, compatible with Apple's iOS system display, tablets, and mobile phones can be used as a display terminal, It is equipped with an industry-leading four-wheel positioning optical system with 5 mega-pixel camera the distance from the camera to the turntable can reach 59'' to 118'' (1500mm-3000mm).
Specifications
| Dimension(LxWxH) | |
| Net weight | 440.92 lbs |
| Power Supply | 100-240V,50/60 HZ,1 Ph |
| Working Temperature | 41F…104 F( 5℃… 40℃) |
| Cameras (Total) | 2 |
| Tire Diameter | 9 27/32-31 1/2 in(250-800 mm) |
| Wheelbase | 62 63/64 -82 43/64 in(1.6-2.1m) |
| Track Width | 70 55/64-177 11/64 in(1.8 -4.5 m) |
| Warranty | 1-Year Limited |
Feature
- Mobile 3D Wheel Aligner for Lift Application.
- Unlimited memory for vehicle specifications.
- No calibration during installation.

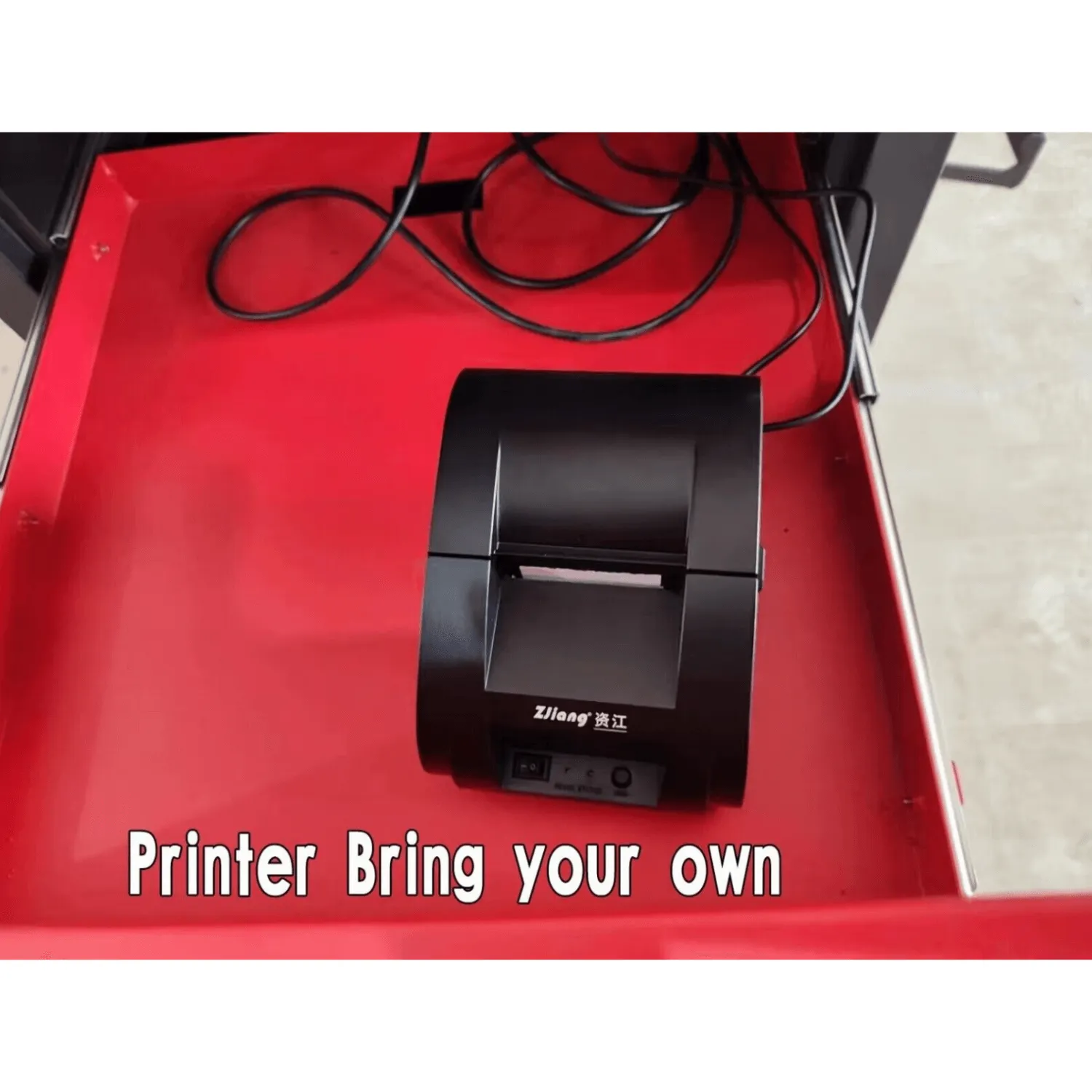

- Includes tablet and a 30-inch display screen, mouse and keypad, and a printer.
- Complementary wifi device and USB drive.
- Uses Android and IOS systems for the software, minimizes the need for software and system maintenance.

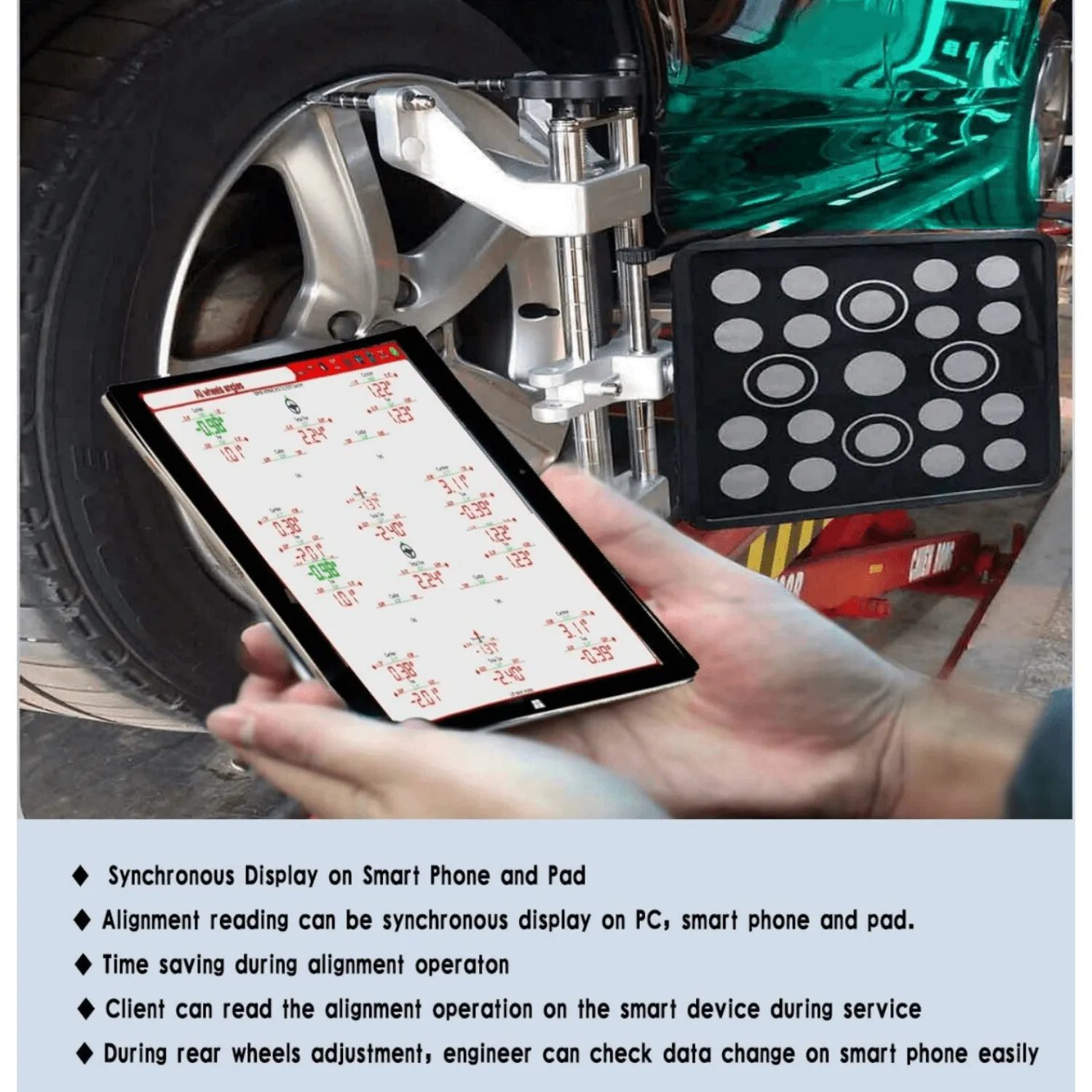

- Synchronous Display on Smart Phone and Pad.
- The client can read the alignment operation on the smart device during the service.
- During rear wheel adjustment, the engineer can check data changes on a smartphone easily.
- The post moves with a remote control, which makes it easy to track the height of the vehicles.
- Free database upgrades yearly.
- The database keeps up with the most recent car models from all US, European and Asian brands.
Package Size
- LxWxH (inch): 39.76x36.61x48.47 110.24x15.75x15.75
- Weight (lb): 529.11
- A forklift or equivalent is required for unloading
