Double DIN Multimedia System Enables You to Enjoy Your Favorite Audio & Video Via USB!

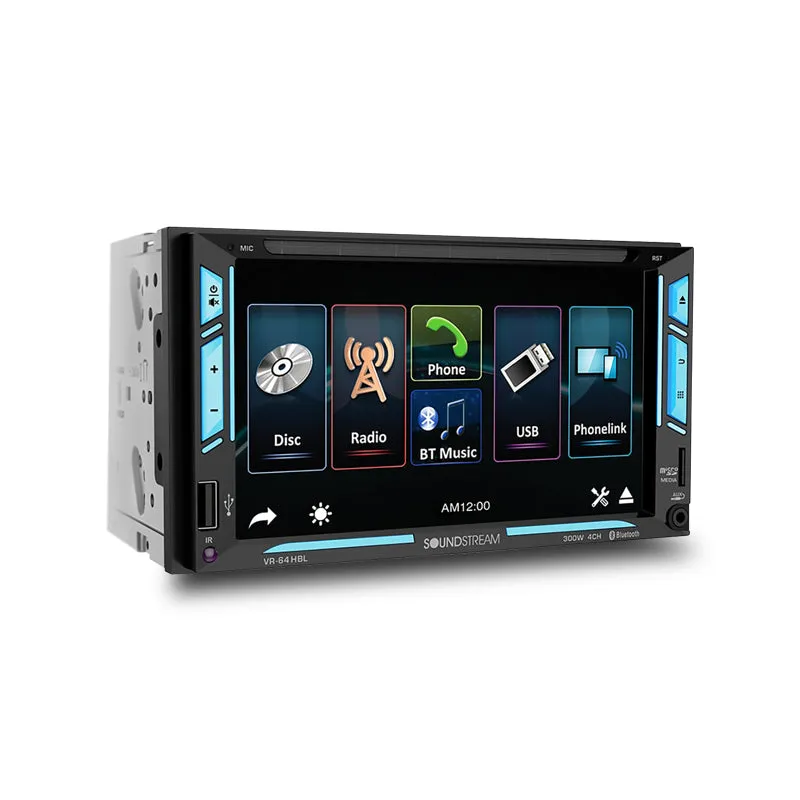

2-DIN Multimedia Receiver with Bluetooth Connectivity
The Soundstream VR-64HBL 6.2” Double DIN Connected Multimedia System enables you to enjoy your favorite audio & video via USB. VR-64HBL supports playback of MP3, WMA, M4A audio files, AVI, MP4 & H264 video files, and JPEG, GIF, PNG & BMP image files are also viewable. ID3 MP3 Tag is compatible with track & artist information.
The hands-free profile dials & receives calls & displays call logs, the Phone book access profile displays caller info & contacts, the Audio remote enables playback controls, and the Advanced audio distribution profile streams audio wirelessly.
Enjoy your favorite audio & video via USB. VR-64HBL supports playback of MP3, WMA, M4A audio files, AVI, MP4 & H264 video files, and JPEG, GIF, PNG & BMP image files are also viewable. ID3 MP3 Tag is compatible with track & artist information.
Soundstream DVD drives playback traditional DVD movies and MP4 and Xvid/Divx video files from DVD-R discs. CD-only products playback traditional CDs, as well as MP3 and WMA audio files from CD-R discs.
Offering 7 color combinations, the RGB lighting feature allows the user to customize the color illumination for buttons and other faceplate accents. Match the receiver’s illumination to the vehicle’s interior lighting or create a color to fit any mood.
The SD Memory Card port will support a microSD memory card to 32 GB and can be used for music playback as well as photo and video viewing (Video for source units equipped with a monitor).
A capacitive touch panel with SmartSense has sophisticated sensors that pinpoint the location of your finger by absorbing the conductivity on the surface of your skin. The crystal-clear glass surface improves image quality, enhancing the viewing experience.
All Soundstream receivers with a color LCD include a composite RCA input for a universal backup camera, making the vehicle’s blind spot(s) visible. Select products include an on-screen distance gauge, showing an estimated distance to objects. Several source units also include a front-facing camera input, a great aide while performing parking maneuvers. Some models, in addition to secondary front camera input. With an onscreen trigger, this is sure to help you at the time of parking with low curbs or hard-to-determine obstacles.
Select multimedia source units to include an 8 or 10-band graphic equalizer. Users can tune the audio to their tastes by increasing or decreasing the level of the various frequencies. Several pre-set genre EQs are included.
Each Soundstream head unit features a Class A/B integrated circuit audio amplifier built-in. It’s 75 watts peak power is sufficient for most factory car speakers. Sound staging options include balance, fade, and a bass & treble level adjustment.
All Soundstream multimedia source units feature a steering wheel remote control receiver. While select units include a dedicated single-wire connection for 3rd-party interfacing modules, most have a typical 3-wire system. The 3-wire system allows manual programming of the SWC receiver directly to the vehicle without a 3rd-party interface.
General Features:
- 2-DIN Connected Multimedia System
- HD 6.2” 800×480 LCD w/ Adjustable Backlight
- Clear Glass Resistive Anti-Glare Touchscreen
- 7-Color RGB LED Illuminated Keys & Accents
- Bluetooth Phone Calling A2DP Audio Streaming
- RCA Back-up Camera Input w/ 12V Auto-on Trigger
- 8-Band 8dB Boost/Cut Equalizer & Preset EQs
Digital Media Playback:
- Video & Audio Playback from DVD, DVDR, CD, & CDR Discs
- Video & Audio Playback from 64GB USB or Micro SD Card
- 720p MP4 & WMV Video Playback; MP3 & WMA Audio Playback
Audio/Video In’s & Out’s:
- AUX Audio (3.5mm) Input for External Devices on Front Panel
- Preamp RCA Outputs; Front Rear Subwoofer
- 2 RCA Video Outputs to Rear Seat Entertainment Systems
- 4Ch. 300w Max Class A/B Amplifier Built-in
Specifications:
- Power Requirement: DC 12 Volts, Negative Ground
- Load Impedance: 4 Ohms
- Maximum Power Output: 80 Watts x 4
- AM Radio Section Frequency Range:
530 – 1710 KHz (America)
522 – 1620 KHz (Europe) - FM Radio Section Frequency Range:
87.5 – 107.9 MHz (America)
87.5 – 108 MHz (Europe) - Disc & Media Play: DVD / VCD / MP3 / CD / JPEG
- Mounting Angle: /- 30 Degree
- Aspect Ratio: 16:9 / 4:3
- Video System: PAL / NTSC
- TFT Screen: 800*480 Pixel
- Communication Type: V4.2
- Maximum Distance: 5 Meters
- Maximum Output Level: 4 Vrms ( /-3 dB)
- Frequency Response: 20 Hz ~ 20 KHz
- Signal to Noise Ratio: 85 dB
- Channel Separation: 80 dB
