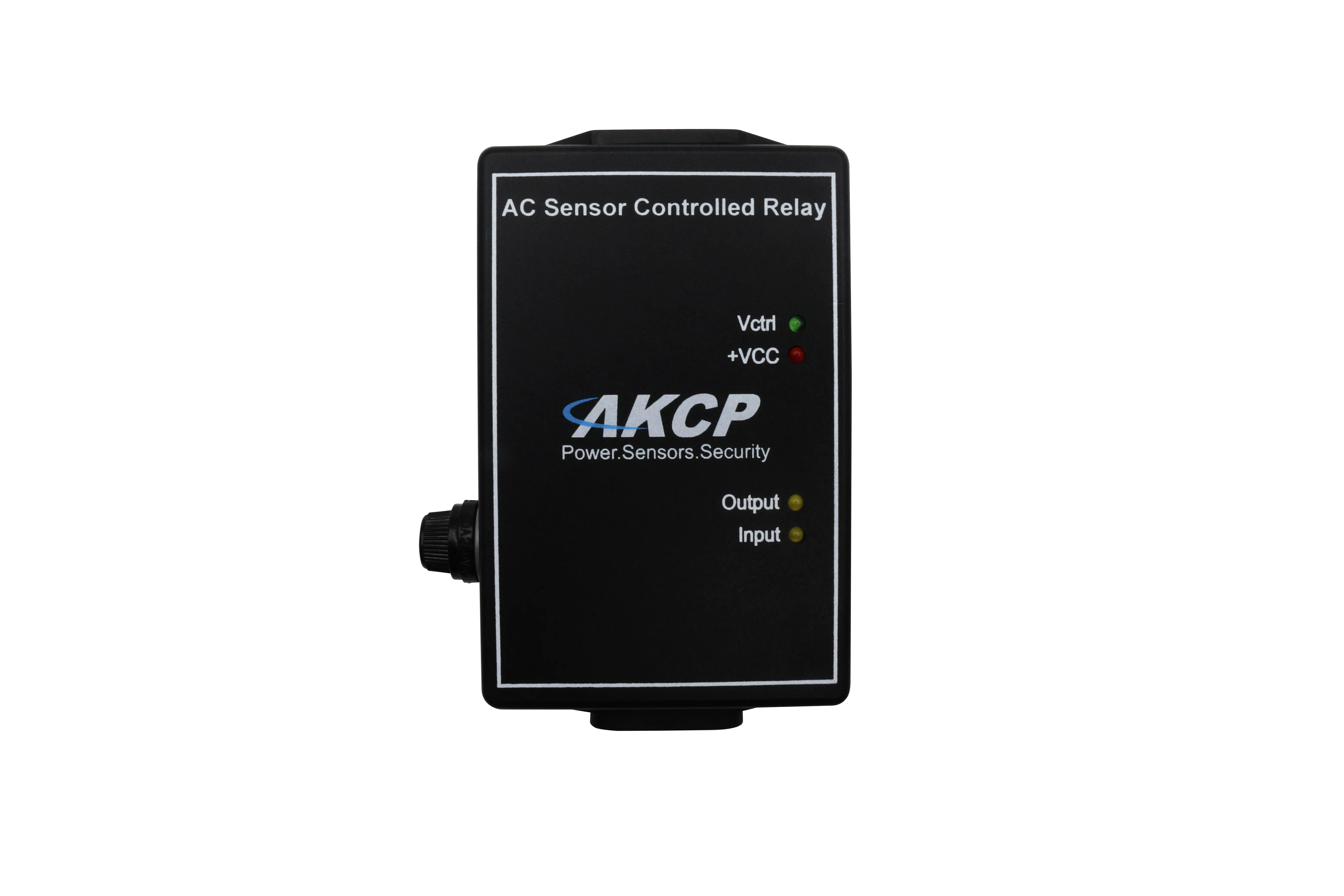

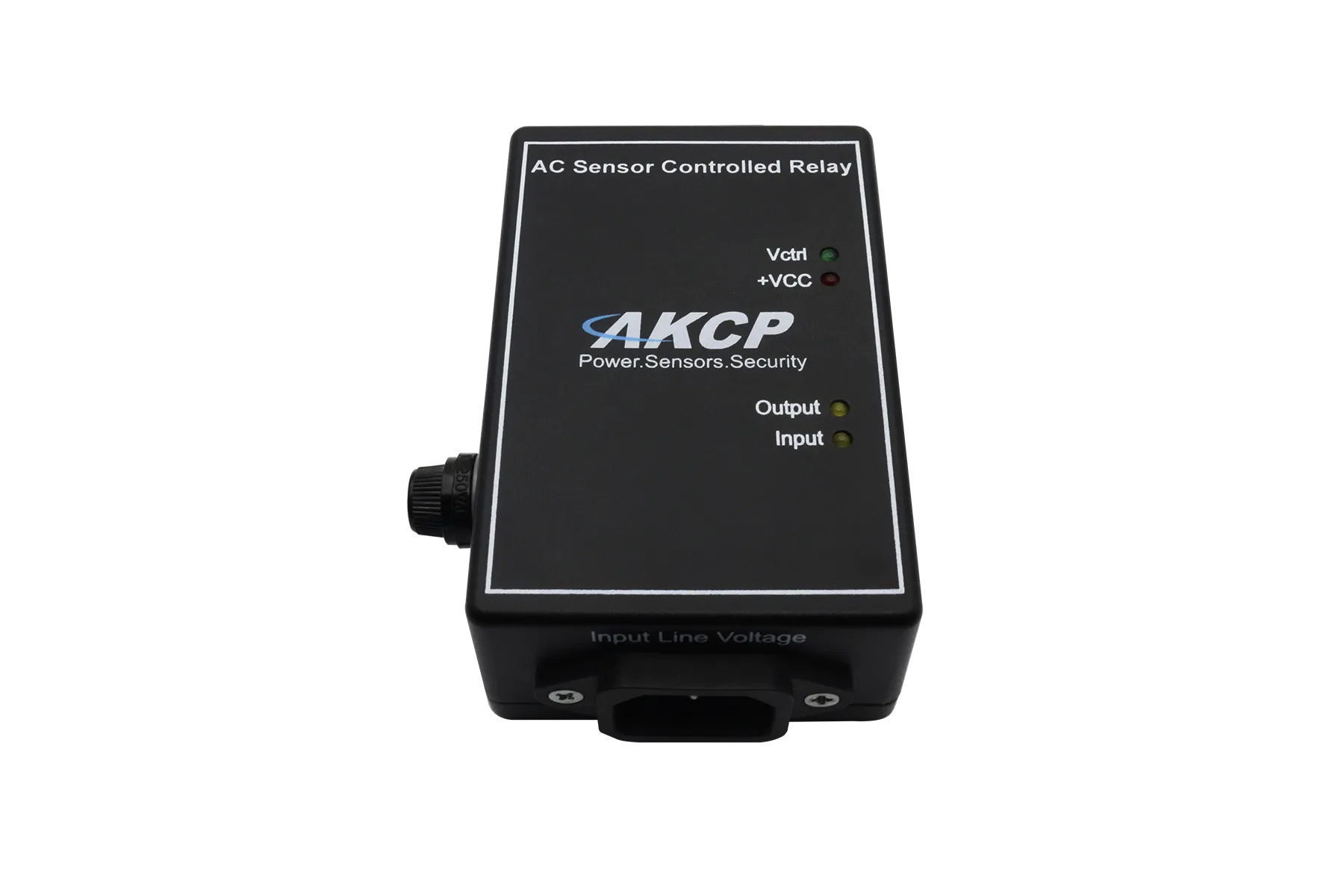

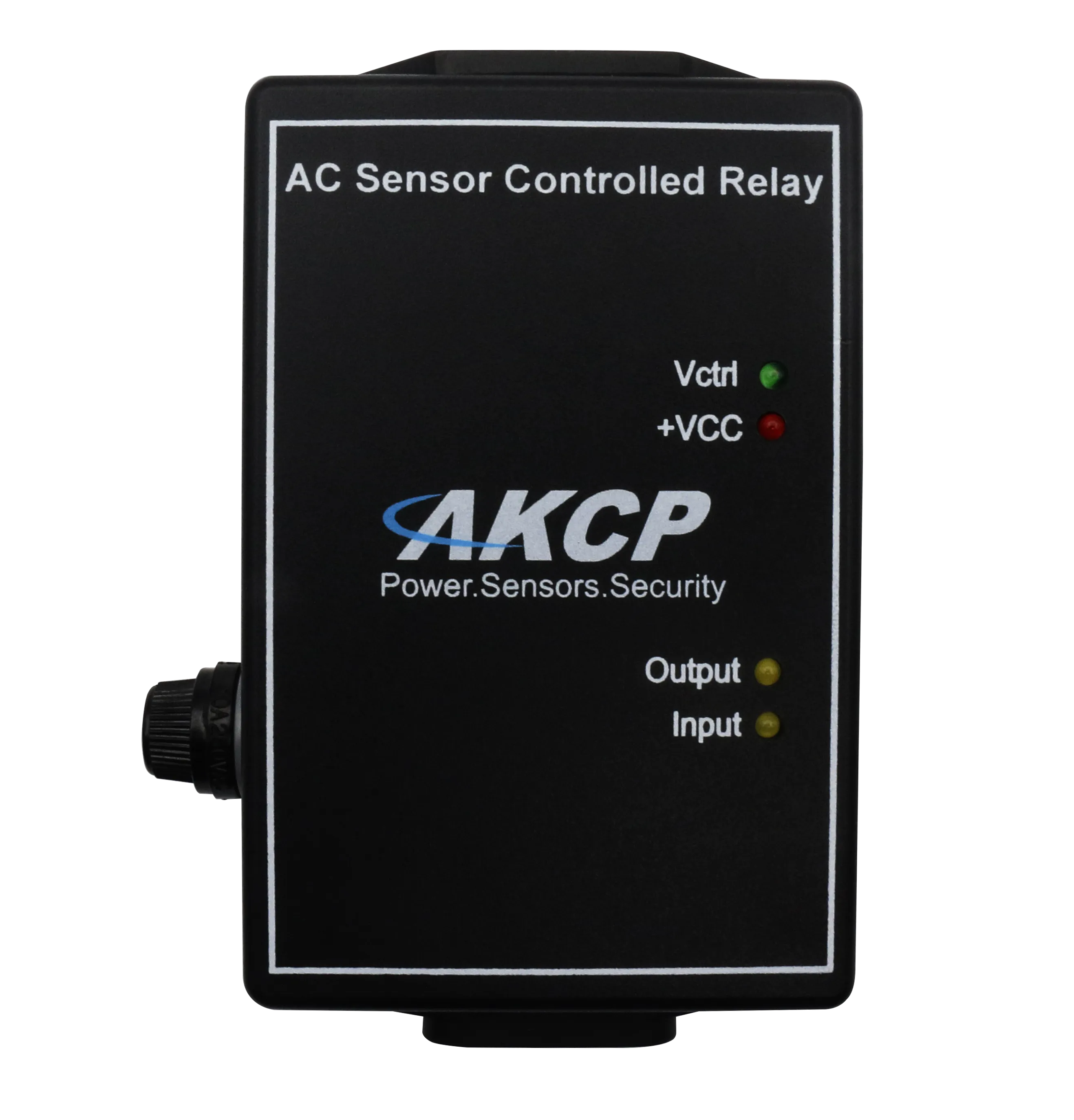

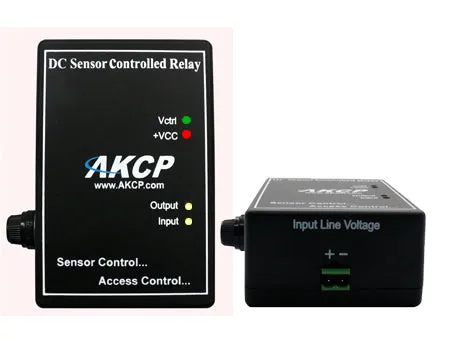

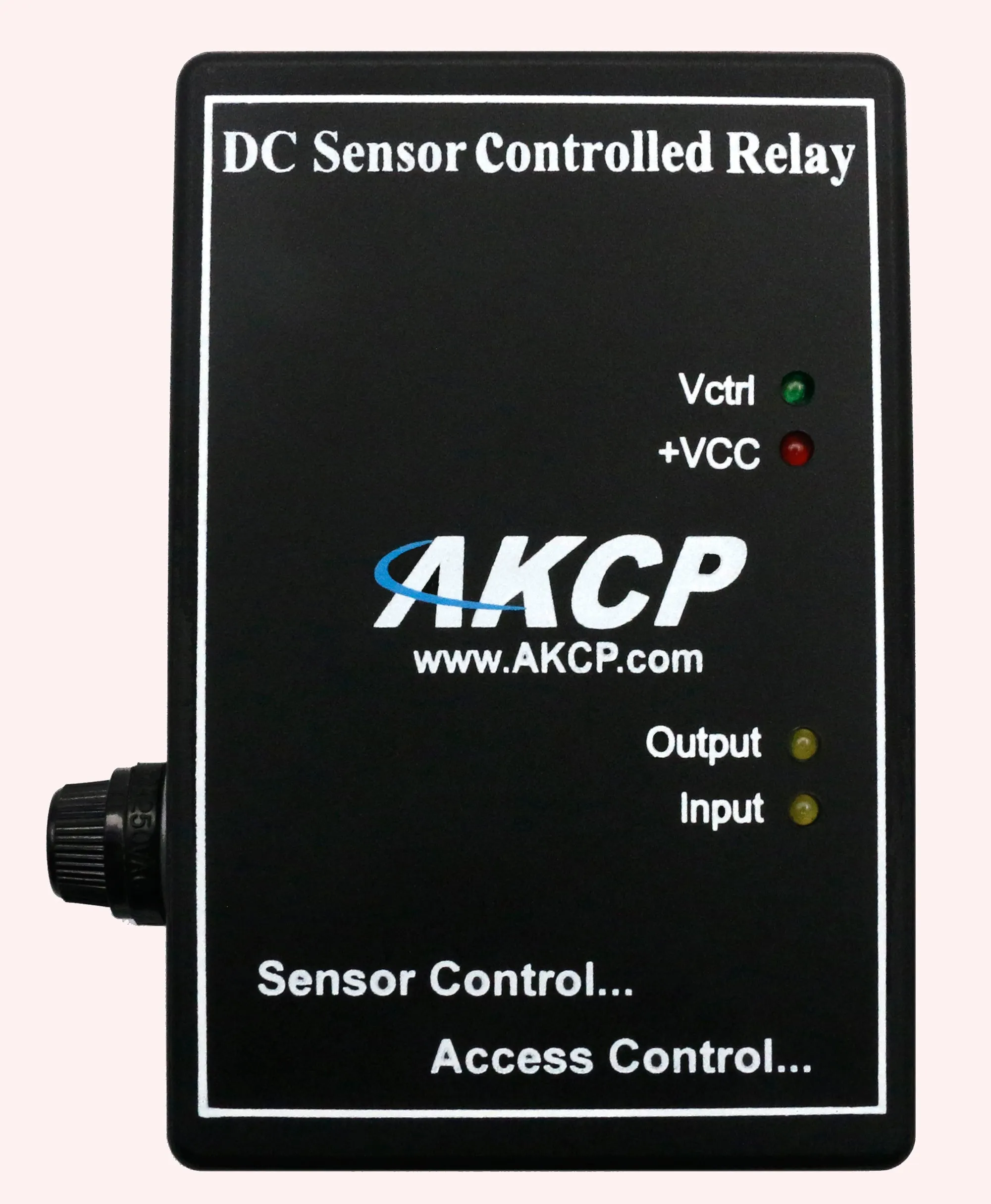

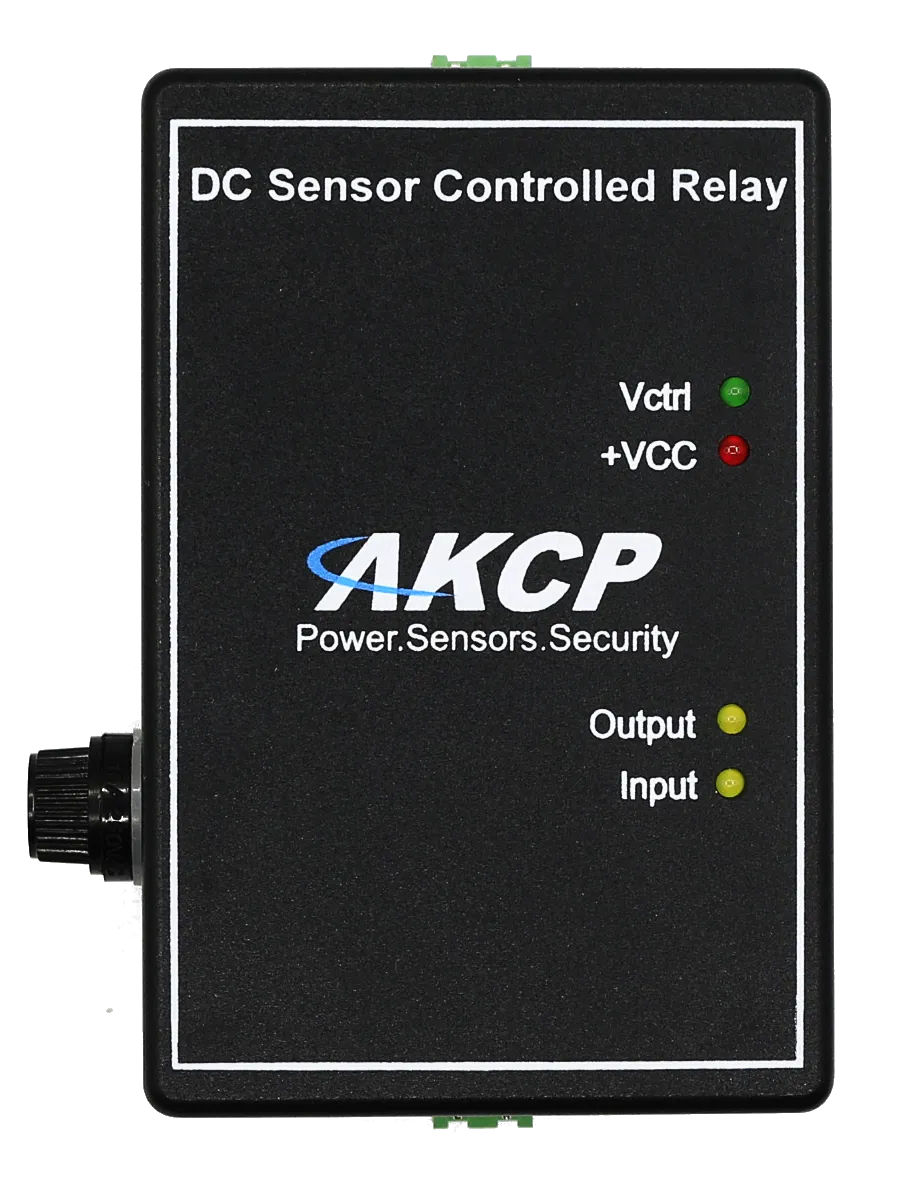

The Sensor Controlled Power Relay allows you to remotely control the electrical power supplied to a device. The relay can also provide automatic responses to sensor alerts and trigger responses such as turning on a fan when the room temperature rises to a set level.

Set-up is easy and works with any of the intelligent or  controllers. The sensor can be placed up to 1,000 feet from the controller using standard CAT5 cable (5 ft cable included).

The Sensor Controlled Relay provides 1 high-power SPDT 5V relay with the maximum load up to 10A for 220 and 110 VAC. It includes Metal Oxide Varistors (MOVs) and Snubber circuits to protect the open contacts of the relays from the high voltage spikes or noise transients. It monitors the power & load and accepts a control signal which is sent from the sensorProbe. Status of the Sensor Controlled Relay is reported by 4 LEDs on the board. Remote monitoring of the status is available using SNMP traps, web interface, e-mail and SMS.
