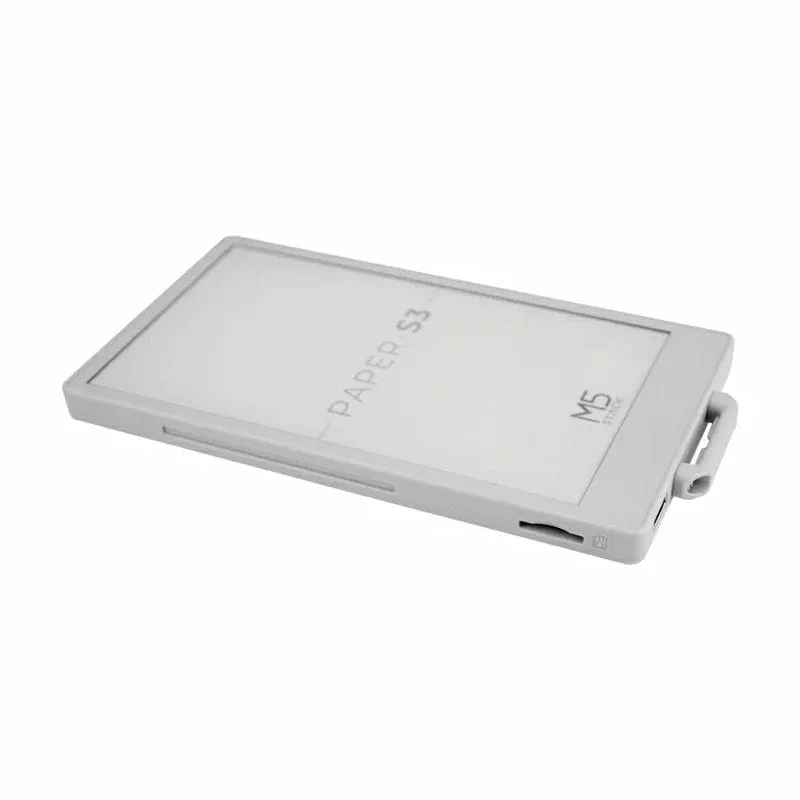

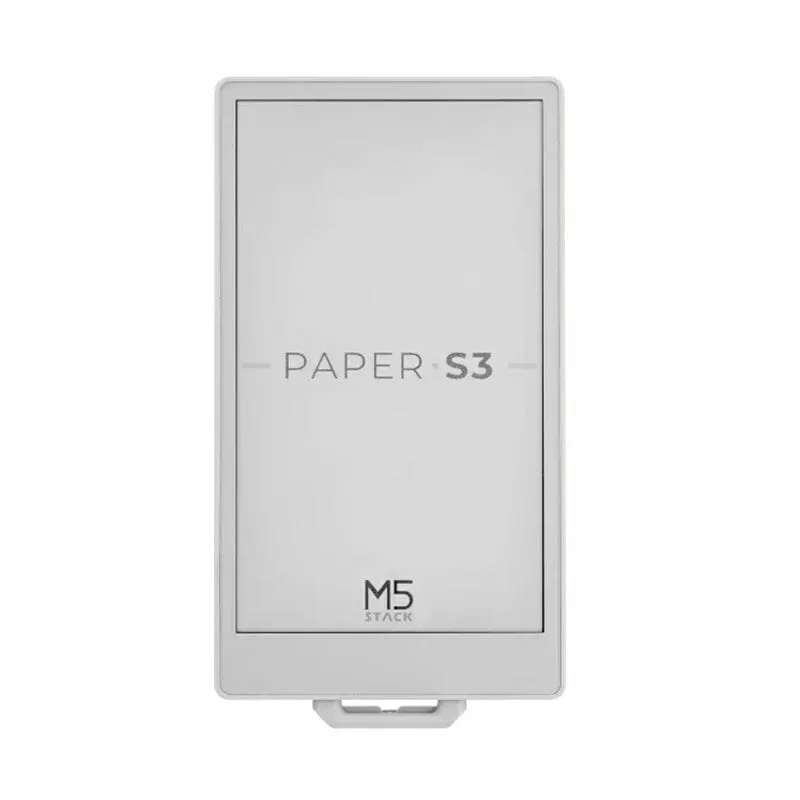

The PaperS3 is a low-power e-ink display controller, powered by the ESP32-S3 microcontroller. It has a 4.7" touch e-ink screen with a resolution of 540 x 960 and has 16 levels of grayscale. It uses a GT911 capacitive touch panel that gives you dual-point touch and gesture controls. Unlike the usual LCD screens, the e-ink display has a better reading experience with easy-to-read text, low power consumption, and the ability to retain images even when powered off.
It also includes a gyroscope sensor, a buzzer, physical buttons, wake-up actions like lifting and power on/off controls. It also has a slot for additional storage and is equipped with the ESP32-S3R8 chip with 8MB of PSRAM. An external 16MB flash memory chip adds more storage capacity and faster data access.

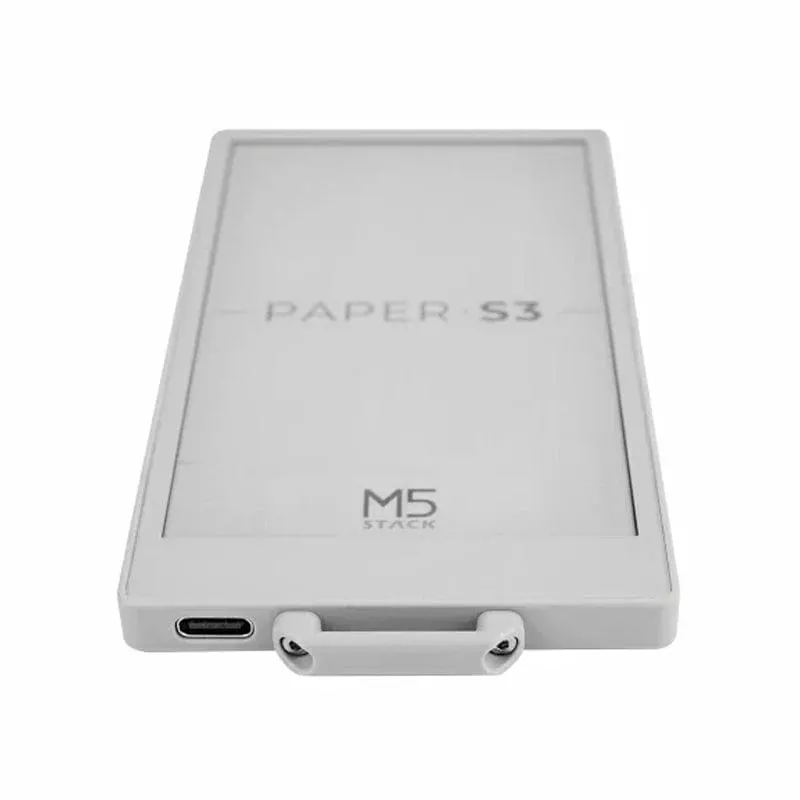

There is an 1800mAh lithium battery with charging support, along with an internal RTC (BM8563) that provides sleep and wake-up functionality for extended battery life. A built-in battery detection circuit monitors the battery status in real time, helping maintain the battery for the long run. A port is at the bottom of the screen for power.
In terms of expansion, the back of the PaperS3 includes an open HC1.25-4P connection for adding external sensors and devices. It also supports OTG, letting you use more devices to connect and exchange data easily.
Note: Due to timing issues with the QC3.0/2.0 protocol in M5PaperS3 firmware, there is a risk of PD generating high voltage and damaging the device. For now, please refrain from using QC3.0/2.0 chargers to charge M5PaperS3.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart your shipping options will be limited and may cost more than our usual rates.

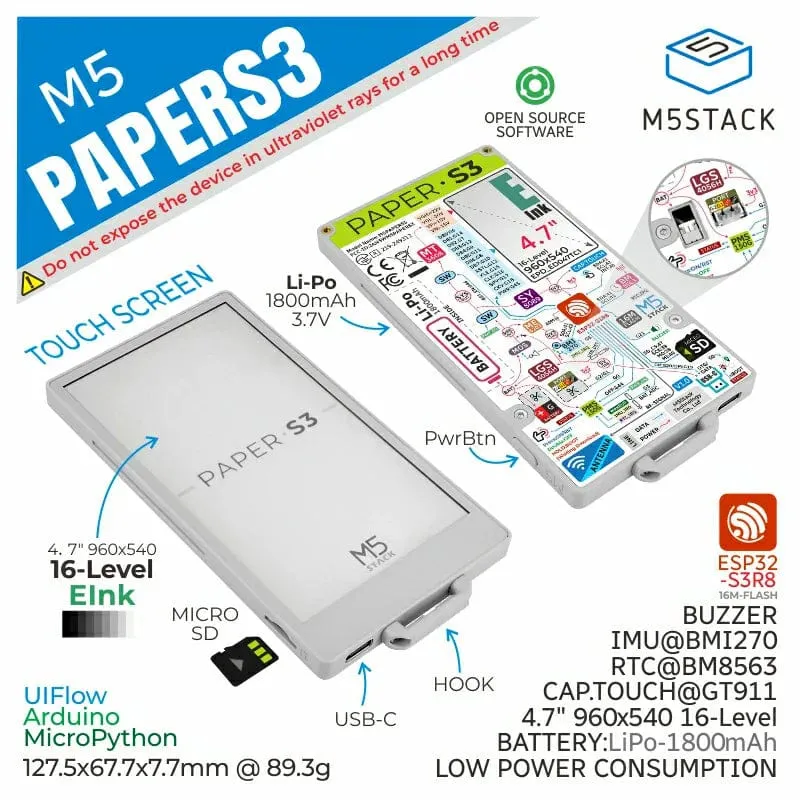

Features
- ESP32-S3R8 Main Controller
- Built-in Gyroscope, Buzzer, and Physical Button
- 8MB PSRAM, 16MB External Flash
- 4.7" Touch-enabled E-Ink Screen with 540 x 960 Resolution
- 1800mAh Lithium Battery
- RTC Chip for Sleep/Wake-Up
- Low power consumption
- Development Platform:
- UIFlow 2.0
- Arduino IDE
- ESP-IDF
- Platform.IO
Specifications
| SoC | ESP32S3R8, Xtensa® 32-bit LX7 Dual-Core Processor, 240MHz, 2.4GHz Wi-Fi |
| PSRAM | 8MB PSRAM |
| Flash | 16MB External Flash |
| Storage | Supports MicroSD Card Expansion |
| Display Screen | 4.7" Touch E-Ink Screen (EPD_ED047TC1) |
| Resolution: 960 x 540 Pixels | |
| 16-level Grayscale Display | |
| Touch Function | Supports Two-Point Touch and Various Gestures (GT911 Capacitive Touch Panel) |
| Sensors | Built-in Gyroscope Sensor BMI270 @ Communication Address: 0x68 |
| USB Function | OTG/CDC/MSC/Firmware Flashing |
| Power Input | 5V@500mA |
| Peripheral Interface | HY1.25-4P (3v3 GND 2xGPIO) for Extending Sensors and Devices |
| Battery | 3.7V@1800mAh @ Charging Chip: LGS4056H |
| Battery Connector | SMT-HDR 1.25-2P |
| Charging Current | 5V@176mA |
| Power Management | PMS150G (Power On/Off and Program Download Control) |
| Built-in BM8563 RTC Chip @ Communication Address: 0x51 | |
| Buttons | 1x Physical Button (for Device Control, Power On/Off, Reset, Download Mode) |
| Buzzer | Onboard Passive Buzzer |
| Wi-Fi | Communication range of 111 meters (in open space, with the antenna positioned vertically at 90° to the ground) |
| Power Consumption | Low power mode: DC 4.2V / 9.28µA (main power off, gyroscope in low power mode) |
| Standby mode: DC 4.2V / 949.58µA (main power off, gyroscope on) | |
| Operating mode: DC 4.2V / 154.02mA (main power on) | |
| Operating temperature | 0 - 40°C |
| Product Dimensions | 121.5 x 67.7 x 7.7mm |
| Package Dimensions | 133 x 76 x 19mm |
| Product Weight | 89.3g |
| Package Weight | 112.9g |
Resources
Package Contents
- 1x PaperS3
