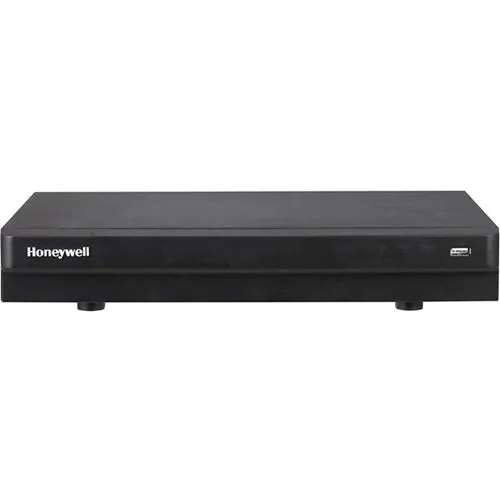

4-Channel, 1 SATA, 720p @ 120 fps, 1080p @ 60 fps, alarm 4/3 input/output, 1 TB, 12 VDC

Supercharge your analog security system with Honeywell’s HQA (High Quality Analog) technology for High Definition 1080p images over your existing coax infrastructure. Our newest HQA DVRs use an over-coaxial cable analog HD video transmission standard to allow long-distance HD transmission at a lower cost. The Performance Series HQA DVRs are the economic alternative for achieving HD video surveillance while retaining your existing BNC cables and cameras.

Fully-featured DVRs

• High decoding capability for full HD viewing and recording.
• View up to 16 channels simultaneously on your monitor with 960 × 540 preview.
• Record all channels @ 720p full frame rate.
• H.264 dual-stream video compression.
• Each channel supports HQA/analog video input; up to 8 additional channels support IP video input.
• Simultaneous HDMI/VGA video output.

Easy to Use

• The Quick wizard and plug-and-play (like traditional DVRs and analog cameras) make setup fast and easy.
• Physical installation within minutes with the help of a comprehensive and easy-to-understand quick installation guide.

Convenient, Flexible Storage Options

• Internal storage options from 1 to 4 TB depending on the model.
• Storage is expandable up to 6 TB for 1 SATA units and 12 TB for 2 SATA units.
• Store videos and snapshots to external storage such as the client’s PC, through the Internet.
• Store videos and snapshots to an external network storage server such as an FTP site.
• Store videos and snapshots to a USB storage device.

Dynamic, Accessible Monitoring

• Monitor from anywhere using the mobile apps for iOS and Android devices.
• All channels support synchronous playback and smart search (search for video that was recorded because motion was detected in a selected area).

Safety Features

• Configurable motion detection and camera tamper detection settings, including configurable event notifications, such as automatic emails (with attached video or snapshot) and automatic alerts (such as buzzers).
• Remote configuration and firmware updating through Honeywell Viewer web client and the Honeywell Config tool. Password-protected access to the camera’s and DVR’s video and network setup.
• Bidirectional communication for the DVR.

Market Opportunities

• The Performance Series HQA Hybrid 1080p DVRs’ HQA technology makes these DVRs perfect for installations where you want HD-quality video while still using your existing coax infrastructure.
• These HQA DVRs also deliver higher quality video than current 960H analog systems, but at a similar cost.
