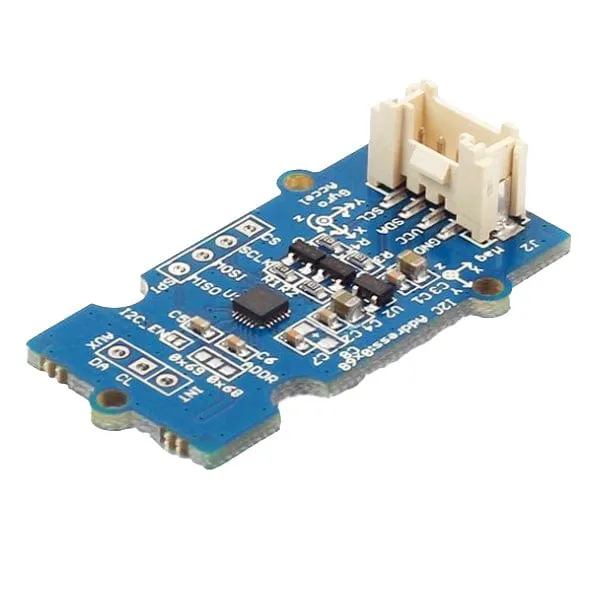

Grove - IMU 9DOF v2.0 is a high performance 9-axis motion tracking module,which is base on MPU-9250.This module features three 16-bit ADC for digitizing the gyroscope outputs and three 16-bit ADCs for digitizing the accelerometer outputs and three 16-bit ADCs for digitizing the magnetometer outputs. low power, low cost, and high performance make it suitable for consumer electronics equipment including smartphones, tablets and wearable sensors .

Features

• Ultra-low power, low voltage
• Wide Detecting Range
• Internal Digital Motion Processing™ (DMP™) engine supports advanced MotionProcessing and low power functions such as gesture recognition using programmable interrupts
• Self-test function
• Product number: Seeed 101020080

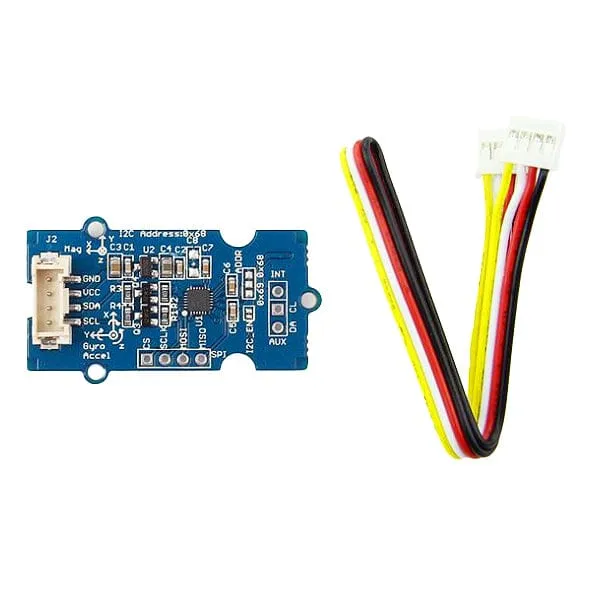

Package Contents

• 1x IMU 9DOF Sensor v2.0
• 1x 26AWG Grove Cable

Specifications

• Working Voltage: 5V
• Digital-output 3-Axis angular rate sensors (gyroscopes) with a user-programmable full-scale range of ±250, ±500, ±1000, and ±2000°/sec
• Digital-output 3-Axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and ±16g
• Digital-output 3-Axis accelerometer with a full scale measurement range is ±4800?T
• Low Power
• Control Mode: IIC
• Operating Temperature?-40 ~ 85°C
• Dimensions: 40mm x 20mm
