NeoVISION24™ TopFlex Neon Tape

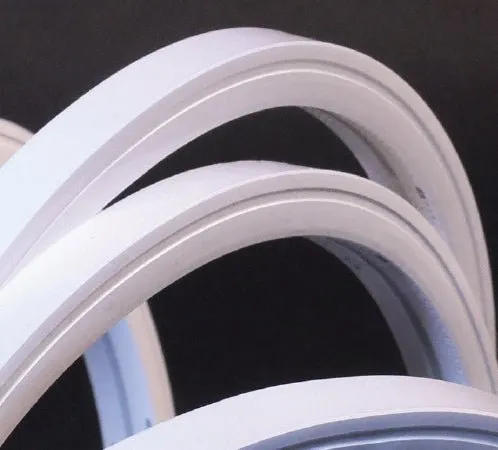

A 24VDC flexible linear ‘neon’ tape that is field cuttable and joinable. Designed for applications that require ultra-rich light and color saturation that is characteristic of neon. TopFlex enables vertical bending that conforms tape around curvilinear surfaces.
- 24VDC operation
- 3W per foot
- Wet location - IP65
- Multiple power feed options
- Tape encased in UV stable silicone (UV protected)
- Dimmable
- Wireless control with LUXcontrol App and controller

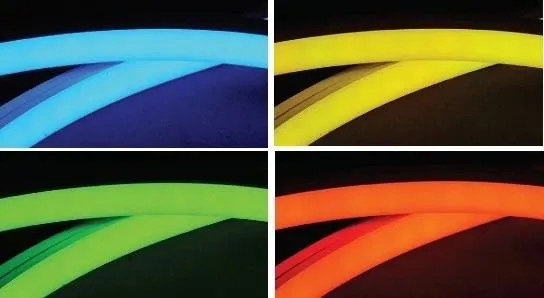

- 3000K or 4000K / Amber, Blue, Green or Red
- 120° viewing angle
- Maximum run: 32’-8”
- Field cuttable and joinable in 2-inch increments while retaining IP65
- No tools required for capping and joining
- Mounting clips included (recommend use 1 per foot)
Spec Sheets
Info
| Catalog No. | Length | Lumens per Foot | CRI | Color Temp. | Max. Run |
|---|---|---|---|---|---|
| NV24T-3W-30K-16 | 16’-4” | 146 | 90 | 3000K | 32’-8” |
| NV24T-3W-30K-32 | 32’-8” | 146 | 90 | 3000K | 32’-8" |
| NV24T-3W-40K-16 | 16’-4” | 149 | 90 | 4000K | 32’-8” |
| NV24T-3W-40K-32 | 32’-8” | 149 | 90 | 4000K | 32’-8” |
| NV24T-3W-AM-16 | 16’-4” | N/A | 90 | AMBER | 32’-8” |
| NV24T-3W-AM-32 | 32’-8” | N/A | 90 | AMBER | 32’-8” |
| NV24T-3W-BL-16 | 16’-4” | N/A | 90 | BLUE | 32’-8” |
| NV24T-3W-BL-32 | 32’-8” | N/A | 90 | BLUE | 32’-8” |
| NV24T-3W-GR-16 | 16’-4” | N/A | 90 | GREEN | 32’-8” |
| NV24T-3W-GR-32 | 32’-8” | N/A | 90 | GREEN | 32’-8” |
| NV24T-3W-RD-16 | 16’-4” | N/A | 90 | RED | 32’-8” |
| NV24T-3W-RD-32 | 32’-8” | N/A | 90 | RED | 32’-8” |
| Kelvin temperature (color) ±100K. Every reel includes (1) NV24T-PF-EF (tape to power feed with 48”; of lead.). 16’ reel includes (16) NV24T-MC-A mounting clips and screws. 32’ reel comes with (32) NV24T-MC-A mounting clips and screws. Operating temp.: -4° - 130°F. | |||||
Accessories
LUXcontrol CONTROLLERS
| MODEL | DESCRIPTION |
|---|---|
| Smart 2.4 GHz WiFi Controller, Standard 12V/24V Low Voltage, 1-Channel / 2-Wire | |
| Universal Smart Power Repeater |
| Catalog No. | Description |
|---|---|
| NV24T-PF-EF8 | Tape to power flexible end feed - 8 ft. length |
| NV24T-PF-BF8 | Tape to power flexible bottom feed - 8 ft. length |
| NV24T-SP | Tape to tape splice connector |
| NV24T-CHL-A4 | Aluminum channel - 4 ft. length |
| NV24T-CHL-A8 | Aluminum channel - 8 ft. length |
| NV24T-MC-A | Aluminum mounting clips (set of 20) |
| NV24T-TTC6 | Tape to tape 6” flexible connector |
| NV24T-TTC12 | Tape to tape 12” flexible connector |
| NV24T-TTC24 | Tape to tape 24” flexible connector |
| NV24T-FLEX-CHL | Flexible mounting channel - 39.5” |
| NV24-CT | Tape cutting tool |
| NV24T-EC | End cap |
