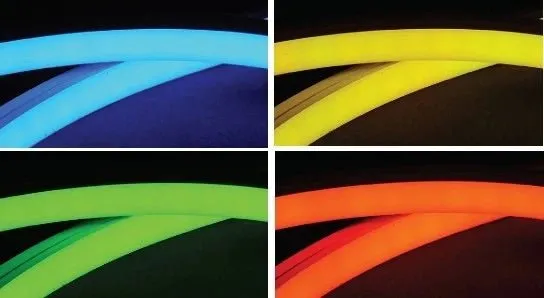

NeoVISION24™ RGBW TopFlex and SideFlex Neon Tape
A 24VDC RGBW, flexible linear ‘neon’ tape that is field cuttable. Designed for applications that requires a neon-like ultra-rich, saturated color with 3500K white. SideFlex enables horizontal bending and TopFlex enables vertical bending that conforms tape around curvilinear surfaces.
- 24VDC operation
- 4W per foot
- RGB with 3500K white
- Wet location - IP65
- Tape encased in UV stable silicone (UV protected)
- Controllable RGBW
- Wireless control with LUXcontrol App and controller
- Dimmable
- 120° viewing angle
- Maximum run: 16’-4”
- Cut and cap only in 2.5-inch increments while retaining IP65
- Mounting clips included (recommend use 1 per foot)
Spec Sheet
Info
| Catalog No. | Length | Wattage | CRI | White Color Temp. | Max. Run |
|---|---|---|---|---|---|
| NV24S-4W-RGBW-16 | 16’-4” | 4.3W / FT. | 90 | 3500K | 16’-4” |
| NV24T-4W-RGBW-16 | 16’-4” | 4.3W / FT. | 90 | 3500K | 16’-4” |
| Kelvin temperature (color) ±100K. Every reel includes (1) NV24T-PF-EF (tape to power feed with 48”; of lead. 16’ reel includes (16) NV24T-MC-A mounting clips and screws. Operating temp.: -4° - 130°F. | |||||
Accessories
LUXcontrol CONTROLLERS
| MODEL | DESCRIPTION |
|---|---|
| Smart 2.4 GHz WiFi Controller, Standard RGBW 12V/24V Low Voltage, 4-Channel / 5-Wire | |
| Universal Smart Power Repeater |
| Catalog No. | Description |
|---|---|
| NV24T-PF-EF8 | Tape to power flexible end feed - 8 ft. length |
| NV24T-PF-BF8 | Tape to power flexible bottom feed - 8 ft. length |
| NV24T-SP | Tape to tape splice connector |
| NV24T-CHL-A4 | Aluminum channel - 4 ft. length |
| NV24T-CHL-A8 | Aluminum channel - 8 ft. length |
| NV24T-MC-A | Aluminum mounting clips (set of 20) |
| NV24T-TTC6 | Tape to tape 6” flexible connector |
| NV24T-TTC12 | Tape to tape 12” flexible connector |
| NV24T-TTC24 | Tape to tape 24” flexible connector |
| NV24T-FLEX-CHL | Flexible mounting channel - 39.5” |
| NV24-CT | Tape cutting tool |
| NV24T-EC | End cap |
