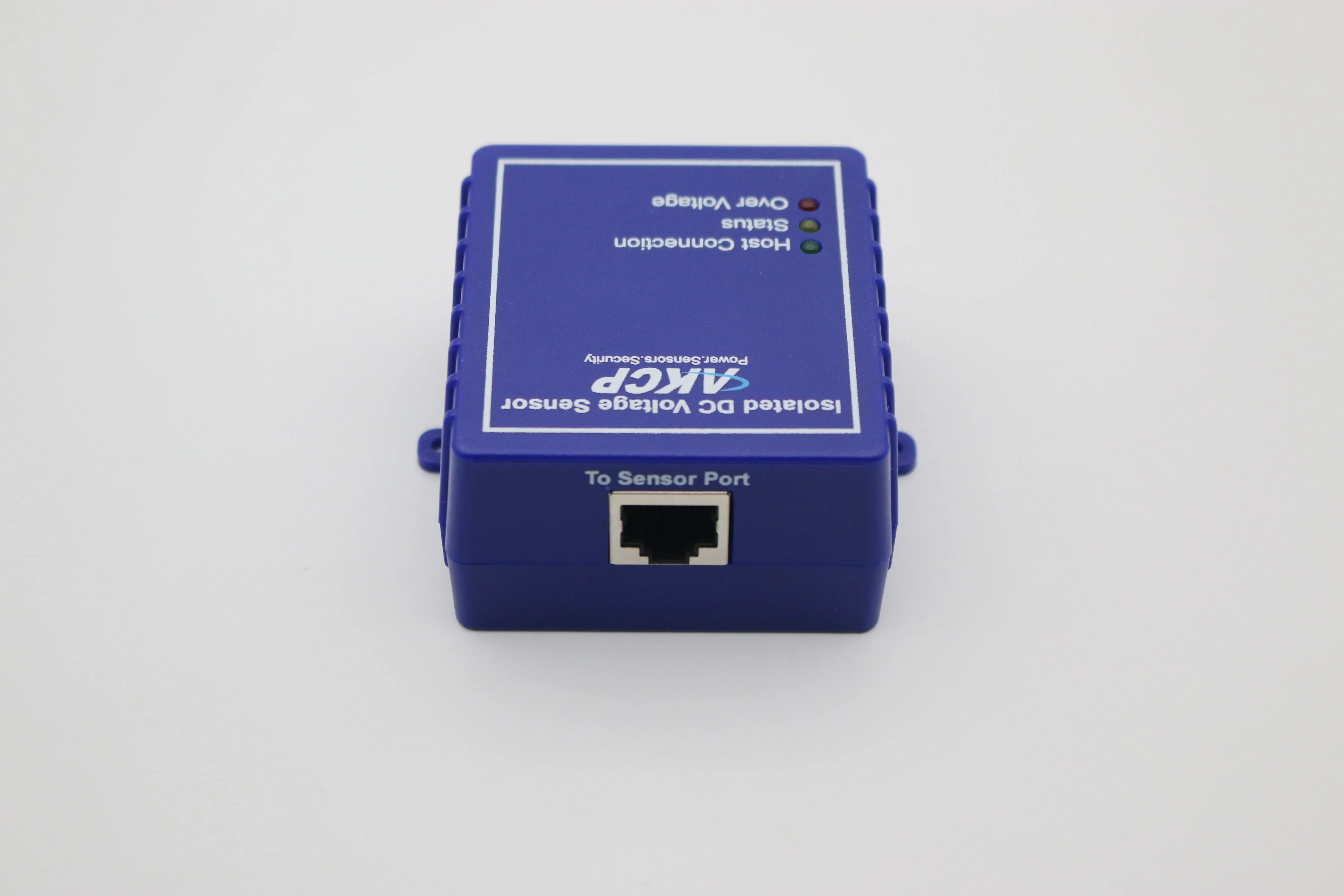

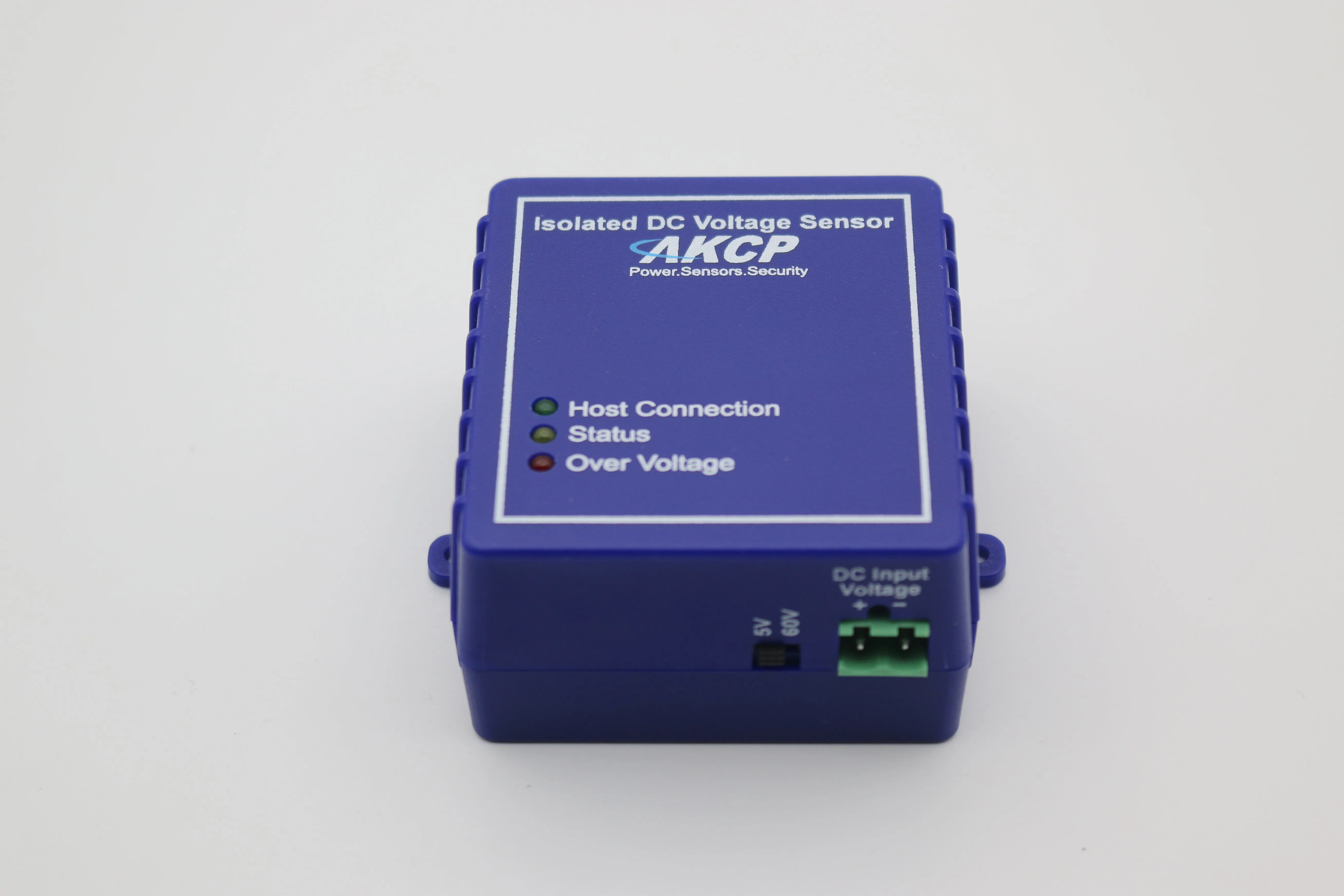

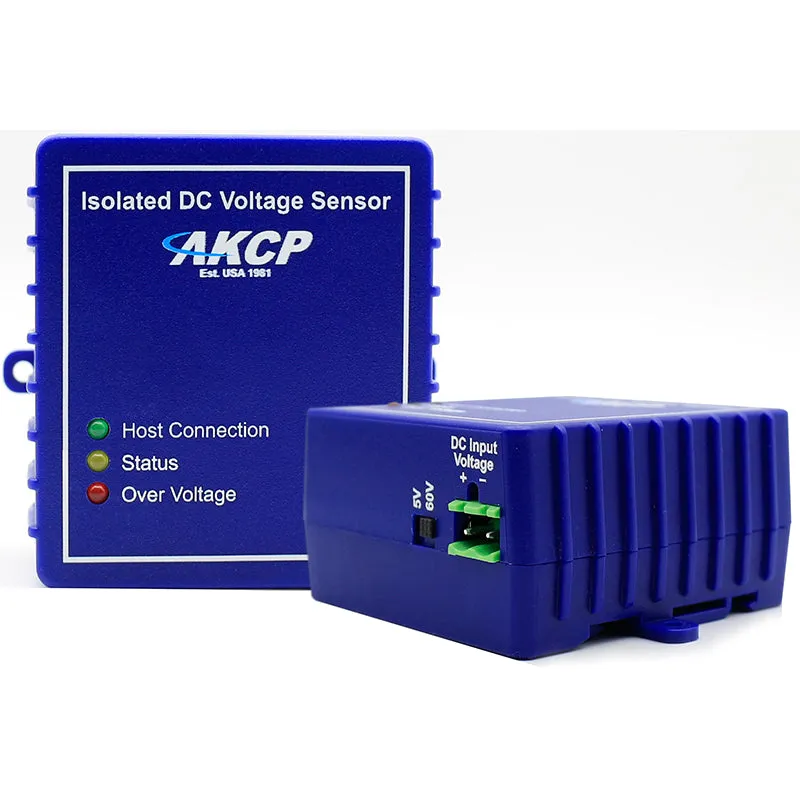

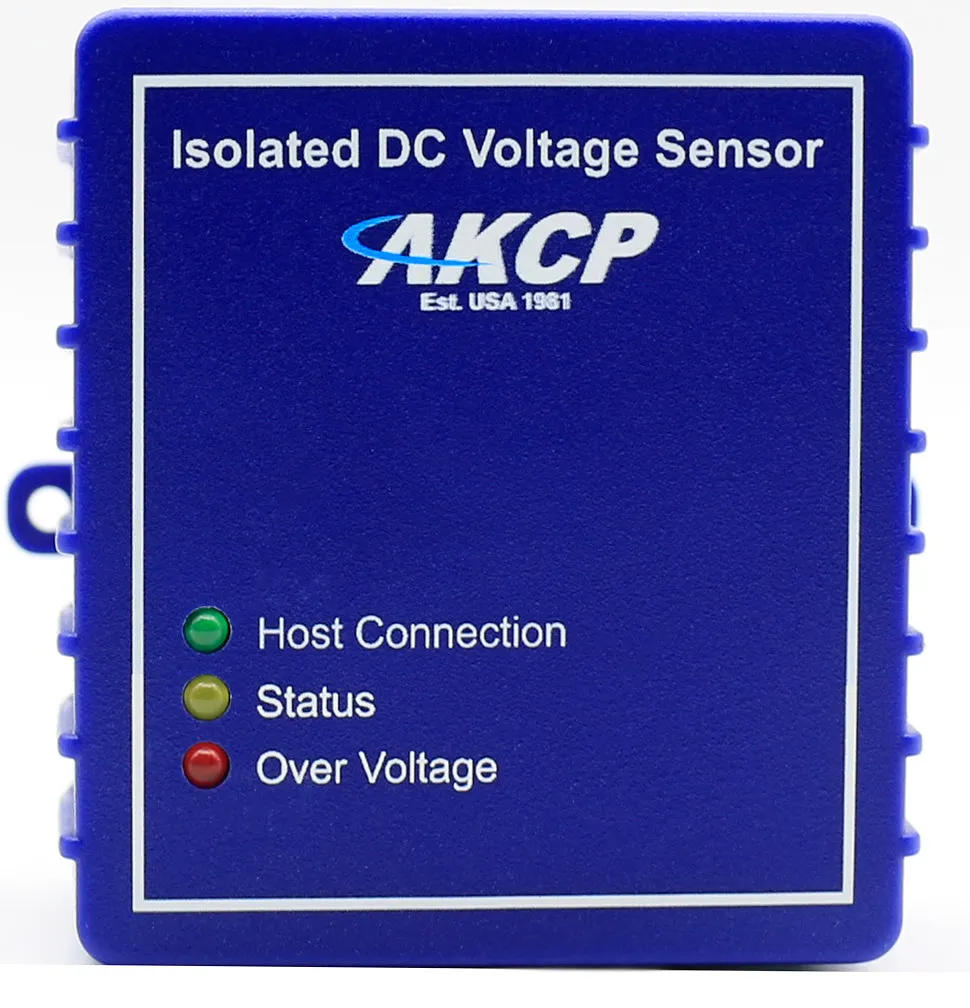

The Isolated DC Voltage Sensor allows the user to integrate a custom sensor to the sensorProbe while still retaining all of the features of the standard sensors. The DC Voltage sensor has the full range of functionality including snmp integration, email and trap generation upon settable limits and thresholds.

The sensor plugs into our intelligent SensorProbes, such as the SensorProbe2, the SensorProbe8, or any SecurityProbe. The sensor can be placed up to 1,000 feet from the SensorProbe using standard CAT5 cable (5 ft cable included).

In some applications, customers have added pressure transducers, Solar Power Monitors, Battery Monitors, and have integrated the sensorProbe into laboratory test equipment.

Readings are available in both an absolute value and a percentage of full scale. Full scale is user programmable with both the base and top voltage from -60 to 0 or 0 to 60 volts.

The web interface for the DC Voltage Sensor is now redesigned to ease the settings when used with the external sensor. The unit of a measured entity can be customized to any text, e.g. Lbs for measuring the pressure. All numbers are now in a decimal point format; hence, it is possible to enter 12.8 Volts or 75.7 Lbs in threshold settings, for example. The display in graph, emails, and traps are now in a decimal point format as well.

SNMP interface for alarm/normal status. SNMP traps sent when status changes. SNMP polling via get available. Web browser interface available. When an alarm condition is activated the description and location of the fault can be sent via email.

NOTE: The iDCV is NOT compatible with:
